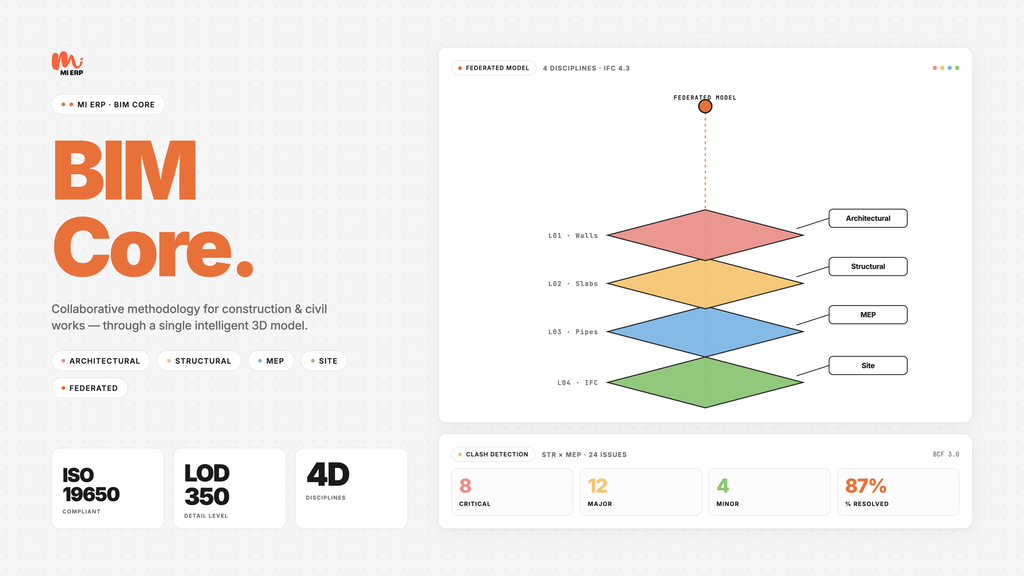

MY ERP BIM

Real BIM core for Odoo 19: IFC parsing, xeokit viewer, ISO 19650, BCF, clash detection

Module functionalities

• IFC2x3, IFC4 and IFC4X3 supported
• Background parsing via OCA queue_job (sync fallback)
• SHA-256 hashed, versioned model files
• Property sets & base quantities extracted per element
• OWL 2 field widget — drop into any form
• XKT streamed via bearer-authenticated REST
• Solibri-style light theme + MI ERP accents
• Element picking Pset / quantity panel
• BCF 2.1 import/export
• Viewpoints with camera state and snapshots
• Comments, statuses and priorities
• Kanban board for triage
• Disciplinary mesh intersection via trimesh
• Clash matrix per project, per discipline pair
• One-click BCF issue with viewpoint
• Tolerance and group-by-storey controls
• Pre-loaded ISO 19650 roles & classifications
• LOIN levels (Level Of Information Need)
• EIR / BEP records with WeasyPrint PDF
• CDE workflow: WIP Shared Published Archived
• BIM project mierp.construction.work
• Quantities APU concepts via classification
• Lives under the Construction app menu
• Single permission tree (BIM User / Coordinator / Manager)
• Bearer-authenticated XKT streaming endpoint
• JSON-RPC /api/v1/mierp/bim/element/by_guid
• Classification & pset lookup endpoints
• Reusable from mobile / external dashboards
• No country-specific data in the core
• Spanish / Colombian / Venezuelan packs as siblings
• i18n: en, es, es_CO, es_VE
• Multi-company, multi-currency aware
• CONPES 4144 BIM strategy
• EIR template — public works
• Cadastre / IGAC classification
• UNE-EN-ISO 19650-2 templates
• FIEBDC-3 IFC mapping helpers
• Public works EIR boilerplate
• SENIAT-aware fiscal codes
• COVENIN classification stubs
• Spanish (es_VE) translations
• Open the construction work and create its BIM project from the stat button.
• Defines disciplines, ISO 19650 roles and the LOIN per deliverable.
• Import the EIR / BEP and render the PDF for the appointing party.
• Upload IFC files per discipline — IfcOpenShell parses them in the background.
• Open any model in the in-form xeokit viewer; click elements for Pset / quantity details.
• Run clash detection between disciplinary pairs; promote clashes to BCF issues.
• Round-trip BCF with reviewers (Solibri, BIMcollab, Trimble Connect…).
• Map element classifications to APU concepts in mierp_construction.
• BIM quantities flow into 2D measurements for the budget.
• Move models through the CDE: WIP Shared Published Archived.
• Main models: mierp.bim.project, model, element, pset, quantity, issue, clash, bep, eir, discipline, role, loin, classification.
• Viewer: OWL 2 field widget (widget="bim_viewer") with vendored xeokit-sdk 2.6.108 ESM bundle under static/lib/xeokit/.
• IFC XKT conversion via the xeokit-convert Node CLI; backend caches the XKT and serves it through a bearer-authenticated controller.
• JSON-RPC endpoints under /api/v1/mierp/bim/* for elements, models, classifications and BCF round-trip.
• BEP PDF rendered with WeasyPrint and MI ERP branding.
• Test suite: 20 Odoo unit tests + 19 Playwright E2E tests, 72% coverage.
• Compatible with Odoo Enterprise and Community.
• Depends on: base, mail, project, mierp_construction.
• Discuss (mail)
• Project
• MY ERP Construction (mierp_construction)
• ifcopenshell — IFC parsing
• trimesh + numpy — clash detection
• lxml—BCF round-trip
• weasyprint — BEP PDF
• xeokit-convert CLI (Node 20+) for IFC XKT
• OCA queue_job for async parsing
• Email support
• Updates included
• Multi-company, multi-currency
